Air Casters Price Guide

Introduction

In any industry, loading and unloading are challenging tasks. Different equipment was available for moving loads. Air casters, air bearing, and air skates are the same. They are the most efficient way of moving heavy loads. The moving drive of the air caster is the thin layer of air. That thin layer of air is 5-10 microns thick. A constant supply of air at standard pressure is required to maintain the air film of the air casters. The air casters can work only on smooth surfaces, so the surface should be free of cracks or bumps.

The air film reduces friction to almost zero. It makes the air casters move 10-100 tons with little force. The cost of the air caster is a problem here. Different brands have different price ranges for the air casters. This article will provide a breakdown of the costs for air casters. It will provide all the information, like price ranges and hidden charges. It will help you realize the importance of choosing the proper manufacturer to save your money.

Quick Price Snapshot (Table)

The price range of the air casters is a bit higher than that of other load-lifting equipment. The equipment’s efficiency has made it a great user choice. Estimating the cost of the equipment is a bit tricky. Basically, the module numbers will decide the price of the air casters. Increasing the module number will increase the price of the air casters.

Here is a summary of the prices that most brands are following. With this information, you will get an idea of the price range of the air casters and make your decision accordingly.

Air Caster Types	Load capacity	Modules number	Price ranges
Standard air caster	1-5 tons	1	200-600$
	5-15 tons	1	600-1200$
	15-30 tons	1	1200-2500$
Full air caster system	10-30 tons	4-6	2500-6000$
	30-60 tons	4-6	6000-12000$
	60-120 tons	4-6	12000-20000$
Custom air casters	150-300 tons	6-12	25K-60K $
Air supply unit	Varies	1 unit	500-800$

The table here provides all the price ranges, and the actual price varies from them. Buyers can get basic information about the cost of air casters. They can make an informed decision about the purchase. They can select the different load capacities and modules for the specific applications.

Price Breakdown by Component

An air caster contains many components. The price of the air caster is determined by the combined cost of all these components. An air caster is not as simple as it looks. It contains many factors that determine the price of the air casters. Breaking down the cost per component will help you understand what you are paying for:

· Air Caster Membranes (Air bladder)

The air caster contains a membrane, the basic functional unit. Manufacturers use various types of membranes to make air-cushion transport systems. The quality of the membranes varies with cost. An excellent quality air caster membrane can bear the following:

• Heavy load pressures
• Repeated inflation cycles
• Chemical exposure
• Floor hindrance
• Temperature variation

The air is contained within the membrane that helps the air caster or air bearing move. The good-quality air membrane is long-lasting and stays intact. The cheaper and lower-quality air membrane fails easily and ruptures.

· Backplate

The plate is usually made of steel or aluminum. The manufacturer makes the backplate that contains the air channels that fill the air bladders. Heavier-duty housings offer greater stability, better air distribution, and a longer lifespan. Air caster housings vary by:

• Precision machining
• Surface treatments
• Plate thickness
• Material grade

The price of the air casters varies depending on the quality of the support system.

· Air channels and hoses

The air casters contain the air channels and the air hoses. The purpose of the air channels is to pass the air from the air source to the air bladder. The air control console contains the regulator and manifold blocks. High-quality consoles offer better control and safer use, particularly when moving delicate equipment.

· Air Hoses and Fittings

The air casters use high-pressure hoses and quick-connect fittings. They are not too expensive but are very important. Ineffective hoses will leak, reducing lift efficiency and increasing air intake.

· Air Supply Requirements

The formation of the air film requires a constant supply of air. The air pressure is around 50-60 Psi.

• A dedicated compressor
• Improved filtration
• Additional storage tanks

Although these are not included in the caster, they still impact project budgeting.

5 Factors That Move the Price Needle

Many factors will influence the cost of the air casters. The fluctuations in the price needle occur due to the following factors:

· Load Capacity

The load-bearing capacity of the air casters is around 20-120 tons. The user can make customized options by increasing the number of modules and plates. Stronger material will increase the capacity of air casters.

Load capacity	Price
Light-duty (10 tons)	Most affordable
Industrial air casters (20-60 tons)	Mid-range
Heavy-duty (100 tons)	Premium price range

· Membrane of the Bladder

The air caster contains an air bladder. The membrane’s durability increases the cost of the air caster. A good quality membrane is usually expensive. The cost of the air caster depends on the quality of the membrane used in the manufacturing.

· Floor Surface

The operation of the air casters required a smooth surface for movement. The industry needs to ensure its floor finishes are free of cracks. It will increase the overall cost of using the air casters.

· Custom Design

Suppose the user requires an air caster. They need to customize their order. Increasing the number of modules and the load capacity will increase the cost of the air casters.

· Brand and warranty

Some brands and companies are offering a warranty. The cost of the air casters increases with the length of the warranty.

Hidden Costs Wholesalers

There are some hidden costs that wholesalers are not providing. Users will understand all the hidden costs that affect the overall cost of the air casters.

• The floor surface needs to be smooth and prepared before use. Polishing and crack-freeing it will increase the overall cost of the air caster operation. Epoxy coating is the most effective and most expensive option.
• The source of the compressed air should be smooth. The interruption in the supply of air will result in the loss of air. That will increase the cost of the air casters.
• The more frequently the membrane is changed, the higher the price of the air casters will be.
• The wholesalers do not provide the shipping and transport costs of the air casters.

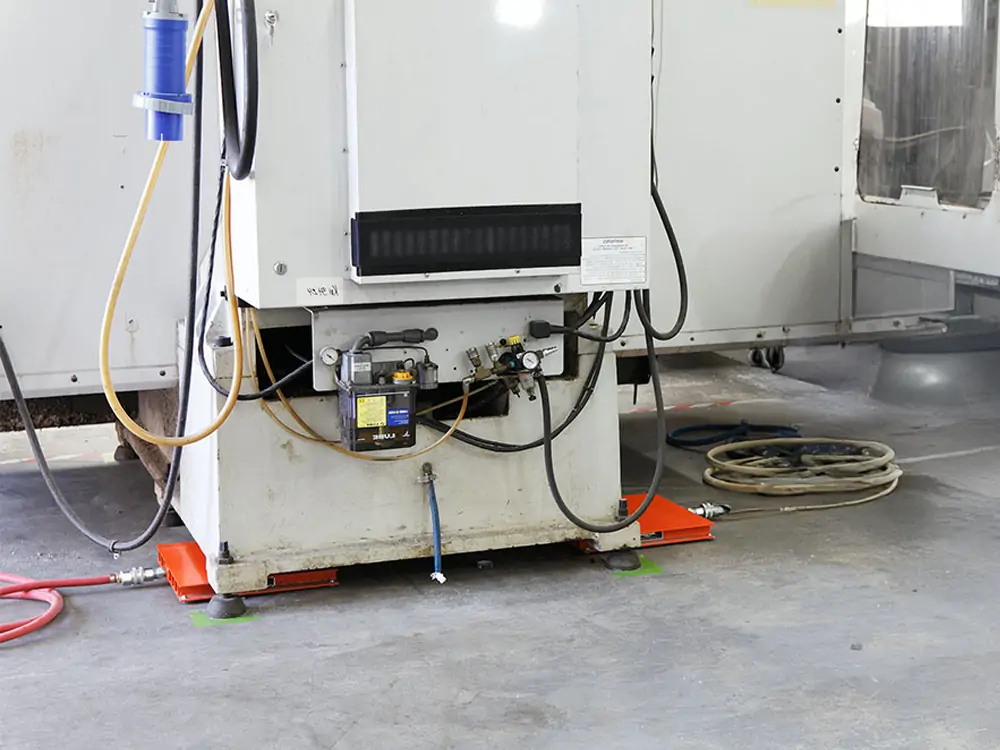

Why Choose Finer’s Air Casters?

The air casters by Finer Tools are of excellent quality. Our company has 26 years of experience in moving heavy loads. Our air casters will provide the frictionless solution for moving the heavy loads. We offer engineering reliability, membrane durability, and cost efficiency.

• The air casters have the CE and SGS certification.
• The air skate system has remained intact for almost 8 years.
• Using the air casters with finer tools will provide high precision.
• We use a high-quality membrane that will reduce overall costs.
• The load capacity of their air caster is around 10-120 tons.
• Finer Tools will provide users with custom-made air casters that fulfil their needs.
• We provide 360° rotation in confined spaces.
• The air casters are pretty easy to handle and use.

Conclusion

Air casters are an efficient, low-friction way to safely transport a heavy load. However, their cost might be expensive initially. The cost-effectiveness of it is realized over time. Consider the factors such as the membrane quality, loading capacity, and floor preparation. Knowing all the details will help customers avoid unexpected costs and select the appropriate system. The right manufacturer choice depends significantly on whether you want a standard setup or a tailor-made solution. Air casters are a clever investment that will facilitate the efficient, easy handling of heavy loads.
